Visualizing how S3 deletes 1 billion objects with Athena and Rust

A few weeks ago I had the chance to delete 1 petabyte of data spread across 1 billion objects from S3. Well, actually 940 million, but close enough to the click-baitable 1 billion. I thought it would be interesting challenge to try and visualize the execution of these deletions and possibly gain some insights into how S3 Lifecycle Policies work under the hood.

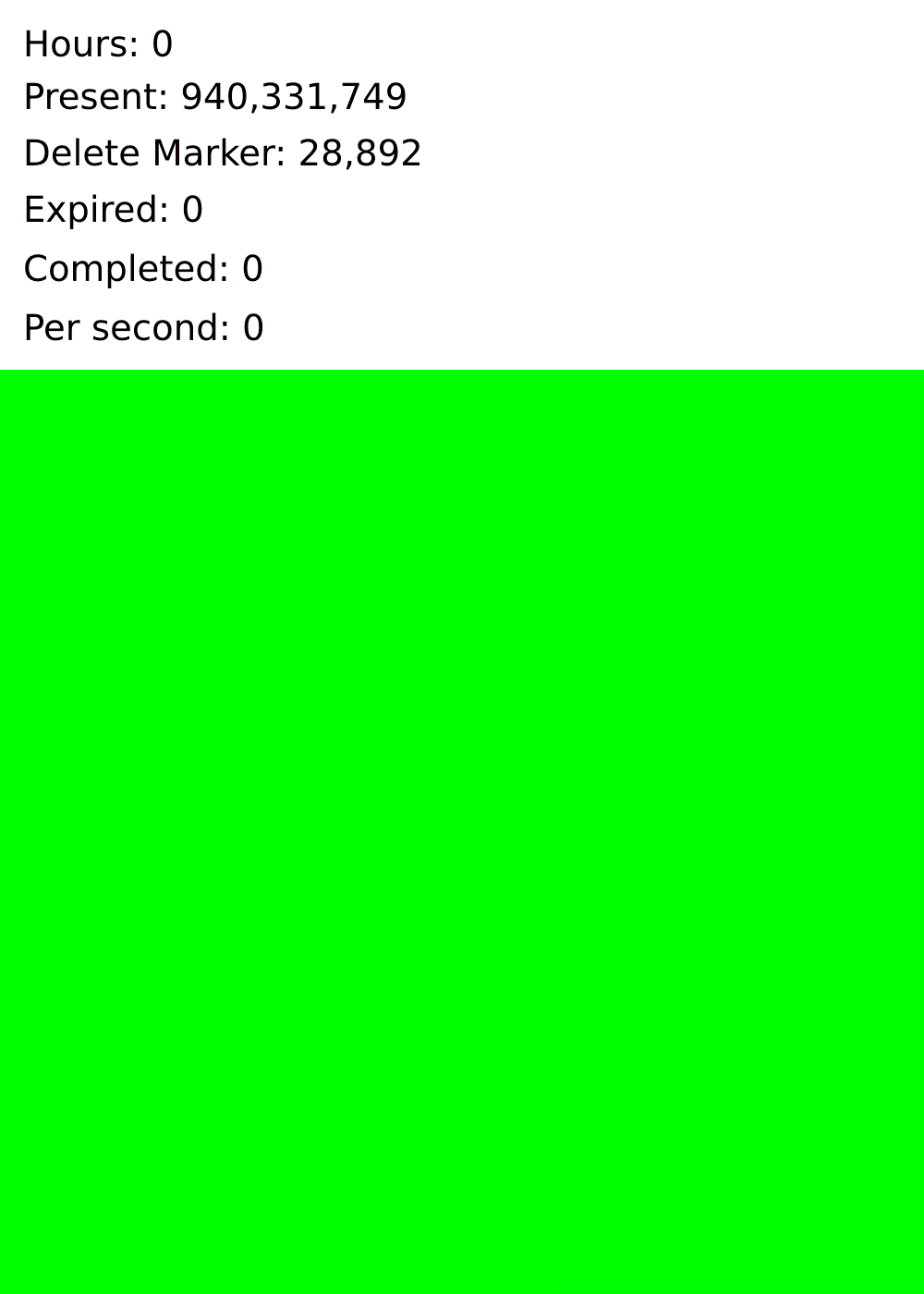

The post below details how I generated the gif shown on this page using Athena and a custom Rust tool, including an interesting bug I encountered with Athena along the way.

#A note about how S3 objects are deleted

Lifecycle policy deletions in a versioned S3 bucket go through several phases. At first each key gets a “Delete Marker” added to it. Delete markers are a special kind of object that hides the key from standard ListObjects calls, making keys appear like they are no longer present.

After a configurable amount of time all “noncurrent versions” of objects are expired, which means all data that has a delete marker as its “current version” will be permanently erased. After this, S3 cleans up all “expired delete markers” - that is delete markers where all the data for the key has been deleted.

The visualization represents this flow with yellow, red and black

#Getting the data

We want to represent each file as a pixel in a GIF image and change its colour as its state changes. To do this we need two sets of data: the set of all keys in the bucket and the set of all state changes on the keys.

There are two sources of data we can utilize to build all the information we need to create the visualisation: S3 bucket inventories and S3 server access logs.

Setting these up for querying with Athena is fairly simple and well documented.

#Segmenting our image

select key, row_number(order by key) as unique_pixel
from set_of_all_keys
order by key

Once we have this, a given key can be identified by a (segment, index) tuple which we can then easily convert to a stable pixel x/y coordinate.

To start with this we want to find a suitable “prefix” we will use to group our rows together. The prefix should ideally be evenly distributed. You could split the key and take the first N characters of a specific part of the key, as depending on how your keys are generated this may result in a more evenly distributed set of prefixes. In the example below we’re taking the first 2 characters of the 4th part of the bucket key:

-- Split /foo/bar/baz into [/foo, /bar, /b], then join it back into a string to form the prefix
select array_join(slice(split(key, '/'), 1, 2) || ARRAY[SUBSTR(split(key, '/')[3], 1, 1)], '/')
from...

However below we just use the first 5 characters for simplicity:

CREATE TABLE keys_with_prefix AS
SELECT substr(key, 1, 5) as prefix, key
FROM s3_inventories o
WHERE is_delete_marker = false
-- Make sure this is a snapshot taken before the lifecycle
-- rules are applied
AND dt = '2022-09-02-00-00'
AND bucket = 'target-bucket';

Now we have our set of keys and their associated prefixes we need to associate numeric (segment, index) values with each of them. Because the set of unique prefixes is much smaller than the set of keys, we are able to use a simple row_number() window function to order them. We then end up with (key, segment, index):

CREATE TABLE key_prefix_segment AS
-- Select the set of distinct prefixes
WITH distinct_prefixes AS (
select distinct prefix FROM keys_with_prefix
),
-- Sort the smaller number of prefixes and add the row_number to them.
-- This produces an ordered set of (prefix, incrementing counter)
prefix_count AS (
select distinct_prefixes.prefix as prefix,
row_number() OVER (ORDER BY distinct_prefixes.prefix ASC) as segment
FROM distinct_prefixes
)
-- Select each key, the segment it belongs to and the row number within
-- the segment.
SELECT o.key,
prefix_count.segment,
row_number() OVER ( -- Use rank here in case of duplicate keys
PARTITION BY o.prefix ORDER BY o.prefix ASC, o.key ASC
) as index
FROM keys_with_prefix o
INNER JOIN prefix_count ON (o.prefix = prefix_count.prefix);

Now that we have this, we can reduce this down into a small set of we can convert these into a much smaller set of (segment, max_index), which form basically a bounding box within the image. This will come in handy later when we start generating the image:

CREATE TABLE ordered_segment_intervals WITH (format = 'JSON') AS
select segment, max(index) as index
from key_prefix_segment
group by 1
order by 1;

Now we have each key in the bucket mapped to a (segment, index) tuple we can parse our access logs to produce a stream of events. S3 access logs are delivered as uncompressed text files, so they can be a bit expensive to query. S3 will log a S3.CREATE.DELETEMARKER and S3.EXPIRE.OBJECT event for lifecycle executions, so we filter for those requests and produce a simple table of requests against keys:

CREATE TABLE parsed_access_logs AS
-- Access logs datetime fields need to be parsed
SELECT parse_datetime(
requestdatetime, 'dd/MMM/yyyy:HH:mm:ss Z'
) as datetime,
(case
WHEN operation = 'S3.EXPIRE.OBJECT' then 'expire'
ELSE 'delete'
END) as operation,
url_decode(key) as key -- And the keys need to be decoded
FROM "s3_access_logs"
-- Only select the operations we care about
WHERE operation IN ('S3.CREATE.DELETEMARKER', 'S3.EXPIRE.OBJECT')
AND bucket = 'target-bucket'

And now we have our request logs and (key, segment, index) mapping we can combine them all together to produce a table of events, segments and the indexes that those events operated on. We can reduce and increase the granularity of these events (and thus the image) by adjusting the size of the bucket that all events are grouped into:

CREATE TABLE bucket_s3_events_grouped WITH (format = 'JSON') AS
-- Truncate the event time into a group. Can be hours, minutes, etc.
select date_trunc('hour', datetime) as bucket,
operation,
i.segment,
-- Create an array of all *numbered* items within the segment
-- that the given operation was applied to, within the "bucket".
array_agg(i.index order by i.index) as indexes
from parsed_access_logs l
INNER JOIN key_prefix_segment i ON (i.key = i.key)
group by 1, 2, 3
order by 1, 2, 3

Hurray! With this we have all the data we need to build the visualization!

#Athena bug: Output rows are not sorted

After running this and downloading the files I found to my surprise that they are not correctly sorted:

$ gzcat file.gz | jq -c "{a: .bucket, b: .operation, c: .segment}" | sort -c
sort: -:264: disorder: {"a":"..21:00...","b":"delete","c":106208}

And indeed, looking for all rows with this timestamp shows that there appears to be an ordering issue:

{"a":"22:00","c":36254}
{"a":"22:00","c":175581} # Incorrect!
{"a":"22:00","c":175582} # Incorrect!
{"a":"23:00","c":1939}   # Incorrect!
{"a":"22:00","c":174409}
{"a":"22:00","c":174410}

It seems like Athena outputted the end of the 22:00:00 group, and the start of the 23:00:00 group, before it had finished writing the 22:00:00 group. Very nnnoying, but it’s ok to sort locally with jq.

#Building the visualizer with Rust

It was a joy to build this in Rust, and you can view the complete tool on Github. The code below is an approximation of the actual code for brevity.

#Defining our structures

We’re reading JSON files that Athena produces, so the obvious way to do this is to use Serde. We just need to define a few structures that derive from Deserialize and we’re good to go:

use serde::Deserialize;

// {"segment":233023,"num":33}
#[derive(Deserialize, Debug)]
struct Segment {
    segment: usize,
    num: usize,
}

#[derive(Deserialize, Debug)]
#[serde(rename_all = "lowercase")]
enum Operation {
    Delete,
    Expire,
}

// {"bucket":"2022-09-02 15:55:00.0","operation":"delete","segment":133135,"items":[1,2,3,4,5,6]}
#[derive(Deserialize, Debug)]
struct Event {
    pub bucket: DateTime<Utc>,
    pub operation: Operation,
    pub segment: usize,
    pub items: Vec<i32>,
}

Once we’ve done that we can define our State, where we hold information about all the events. I chose to store the state of all files in a single contiguous vector, which worked out to use only a gigabyte of memory in total. We then store the smaller (segment, max(index)) bounding boxes in offsets, which means that given a (segment, index) tuple we can compute the pixel by indexing into offsets and adding index to the returned value. This gets us an index into the files vec:

#[derive(Clone, Debug, Eq, PartialEq)]
enum FileState {
    // File exists
    Present,
    // Key is deleted
    DeleteMarker,
    // File completely deleted
    Expired,
    // The delete marker is gone
    DeleteMarkerDeleted,
}

struct State {
    offsets: Vec<usize>,
    files: Vec<FileState>
}

impl State {
    fn set_item(&mut self, segment: usize, index: usize, state: FileState) {
        let offset = self.offsets[segment - 1];
        let idx = offset + index - 1;
        self.files[idx] = state
    }
}

And then we can have some logic to turn our State into an image using the image crate. This was the slowest part of the process

use image::{Rgb, RgbImage};

impl State {
    fn get_frame(&self, image_size: u32) -> RgbImage {
        // The slowest part of the whole shebang.
        image::ImageBuffer::from_fn(image_size, image_size, |x, y| {
            let row_idx = y * image_size;
            let idx = row_idx + x;
            match self.files.get(idx as usize) {
                None => Rgb([0, 0, 0]),
                Some(v) => turn_state_into_rgb(v),
            }
        });
    }
}

And then we can start loading our events! As Athena outputs multiple (sorted 😅) files, we can create a serde iterator from each of the files and use kmerge_by from the awesome itertools crate to yield them in a sorted fashion! We then group the events by the bucket (the time period when the events happened).

Being able to do something like this feels very ‘python-y’ and it’s one of the reasons I love working with Rust.

use itertools::Itertools;

fn main() {
    let state = State::new();

    let mut event_iterators = vec![];
    let events_files = fs::read_dir("some-event-dir")?;
    for event in events_files {
        let file = File::open(event?.path())?;
        let reader = BufReader::new(GzDecoder::new(file));
        let event_lines = serde_json::Deserializer::from_reader(reader)
            .into_iter::<Event>();
        event_iterators.push(Box::new(event_lines));
    }

    let items = event_iterators
        .into_iter()
        .kmerge_by(|a, b| a.bucket < b.bucket)
        .group_by(|e| e.bucket);

    for (group, events) in items.into_iter() {
        println!("Group: {}", group);
        for event in events {
            state.update(event);
        }

        let image = state.get_frame(1_000);
        image.save(format!("images/{}.png", group))?;
    }
}

Once we have our stream of sorted events being fed to us as simple Rust structs, we can manipulate our state:

impl State {
    fn update(&self, event: Event) {
        let current_state = self.get_state(event.bucket, event.index);
        // Do some logic here to transition objects. i.e if the object is present
        // and the event is 'delete', then it is now FileState::Deleted.
        let new_state = compute_new_state(event, current_state);
        self.set_item(event.bucket, event.index, new_state);
    }
}

And that is it! Now we have a directory full of PNG images that we can create a gif from using imagemagick:

$ convert -delay 5 -loop 0 images/*.png animation.gif

#Learnings

This was a great excuse to brush up on my SQL skills, learn more about Athena and get the chance to play with some Rust imaging libraries.

As for S3? The gif clearly shows that each of the underlying storage partitions executes the lifecycle policies independently, and that these partitions are a function of the object key.

In total it took about 6 days to delete all the objects.
